TP-LINK Indoor Omni-directional Antenna Item # 507262
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
507262
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description

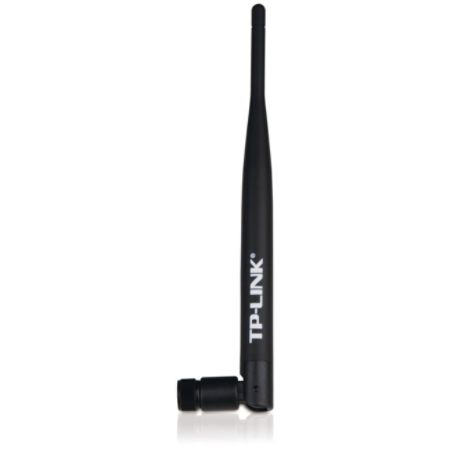

The TL-ANT2405CL 5dBi antenna is ideal for upgrading your wireless access points/routers. It is very easy to use, no configuration or software installation required.
Product Details
| Item # | 507262 |
| OfficeMax # | 24025797 |
| Manufacturer # | GD6408 |
| height | 7.5 in |
| Vertical Beamwidth | 32° |
| Certifications & Standards | IEEE Standards: 802.11n; 802.11g; 802.11b |
| Directivity | Omni-directional |
| width | 0.5 in |
| Product Name | 2.4GHz 5dBi Indoor Omni-directional Antenna |
| Antenna Gain | 5 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Number of Connectors | 1 |
| Compatibility | TL-WA601G Wireless Access Point; TL-WN851N Wireless N PCI Adapter; TL-WR941ND Wireless N Router |
| Application/Usage | Wireless Data Network |
| Polarization | Linear Vertical |
| brand name | TP-LINK |
| USB | No |
| frequency | 2.40 GHz |
| Frequency Band Type | UHF |
| impedance | 50 Ohm |
| Application | Indoor |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| connector type | RP-SMA |
| form factor | Direct Mount |
| warranty length | 1-year limited |
| model name | TL-ANT2405CL |
| Horizontal Beamwidth | 360° |
| Frequency Range | 2.4 - 2.4835 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
The 2.4GHz 5dBi Indoor Omni-directional Antenna TL-ANT2405CL operates in the 2.4-2.4835 GHz band and provides 5dBi omni-directional operation which largely extends the wireless range and delivers much better wireless performance. The antenna offers a RP-SMA Male (Plug) connector, guaranteeing wider compatibility with most wireless equipment such as routers or access points.
-
Easy To Use
Installation is very easy. Just detach your device's factory antenna and attach the TL-ANT2405CL and you'll experience an instant increase in signal coverage and stability. Please note that the increase in signal strength depends mostly on your router or adapter; upgrading the antennas helps but the signal cannot transmit or receive at a level that your modem or adapter does not have.
See More:
Features
- Compliant with 802.11n/b/g (2.4GHz)
- 5dBi signal gain
- 130cm(51.2 in) low-loss extension cable
- RP-SMA Male connector
Specifications
| ANTENNA | |
|---|---|
| Frequency | 2.4GHz |
| Impedance | 50 Ohms |
| Gain | 5 dBi |
| Radiation | Omni-directional |
| VSWR(MAX.) | 1.92:1 |
| HPBW/H( °) | 360° |
| HPBW/V( °) | 32° |
| Polarization | Linear, Vertical |
| Mounting | Desktop / Fixed on metal surface |
| Application | Indoor |
| Operating Temp. | -40°C~65°C(-40℉~149℉) |
| Storage Temp. | -40°C~80°C(-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Datasheet
-
TL-ANT2405CL Datasheet
TL-ANT2405CL Datasheet - opens PDF
PDF, 890K, 2 pages
